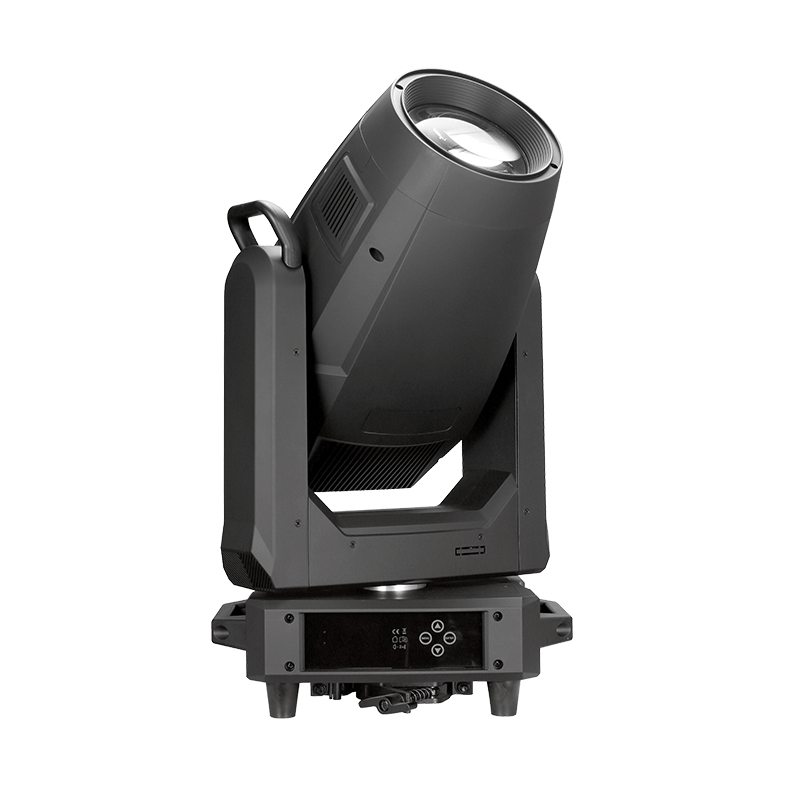

800W LED Moving Profile
Product Introduction
The azcolor led moving PROFILE, a powerful innovation with features designed to redefine your lighting experience. Featuring a 800W LED engine and professional optical system lens, the fixture creates brilliant and vibrant light. With a versatile beam angle ranging from 3°~40° . Two CRI for optional, beam effect CRI70 first, Profile effect, CRI90 first.
youtube URL: https://youtu.be/Ajz8rZf5UaU?si=fYTymJl_WU5jGsWV
Application areas
all kinds of performance occasions.
Share：
- Item Name: 800W LED Moving Profile
- Item No.: LD-MH-800
- Input Voltage: AC110-240V,50/60Hz
- LED Lighting Source: 1pc 800W COB led
- Color Temperate: 7000K
- CRI:70/90 for optional
- LED Lifespan: 20000hrs

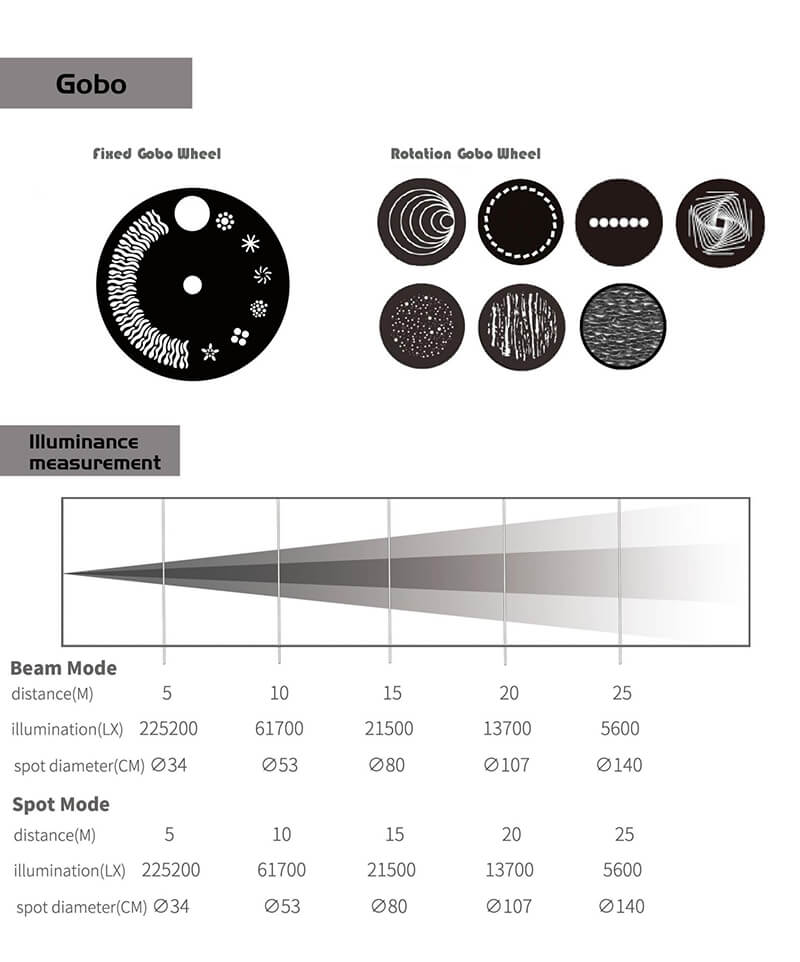

- Lux: 5m @225200 LX
- Rated power Consumption: 1000W;
- Beam angel(zoom coverage): 3°~40°
- Pan: 540°; 8Bit/16Bit;
- Tilt: 270°; 8Bit/16Bit ;
- Shutter: 0~25Hz
- Channels mode: 35chs

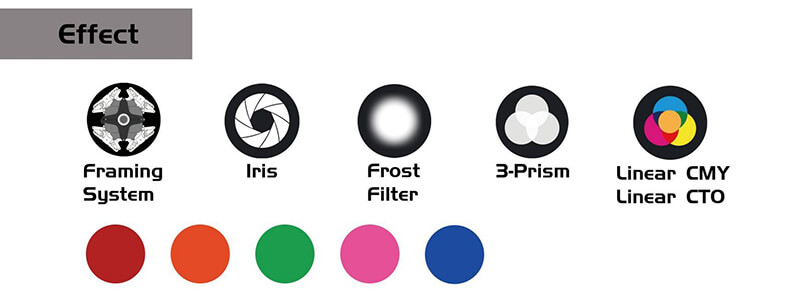

- Color Wheel: 5 Colors+open+cmy
- Color Mixing System
- Fixed gobo: 6 gobos + open.
- Rotation gobo: 7 gobos+ open,changeable;
- Rotation Prism Wheel 1:3 Facet Prism
- Frost:separately Frost
- Focus: DMX linear adjustment
- Framing: 1 set of 4-side Framing system, 90°rotation
- Iris: Motorized linear iris
- Display: 2.8 inch screen display, can reverse 180°;
- Dimmer : 0-100% l inear adjustment ;
- IP Rate: IP20;
- Product size: 383x274x670mm
- N.W: 28kg
- G.W: 30 KG(carton).
- Warranty: 12-month,electronic parts

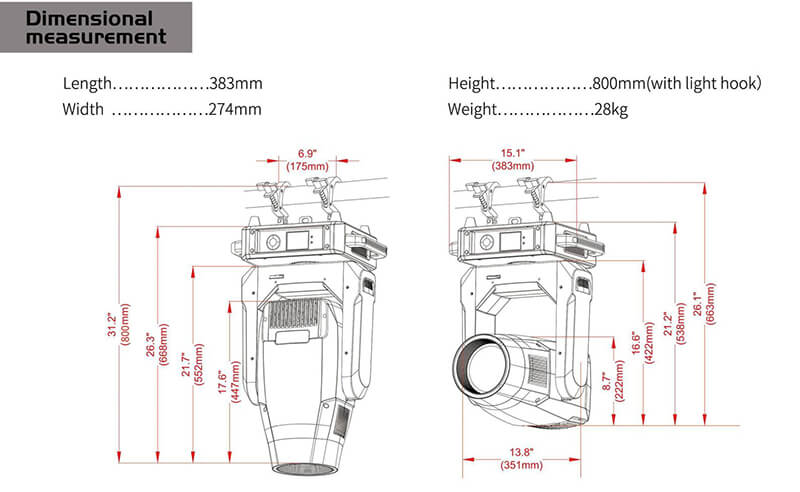

CAD Drawing:
