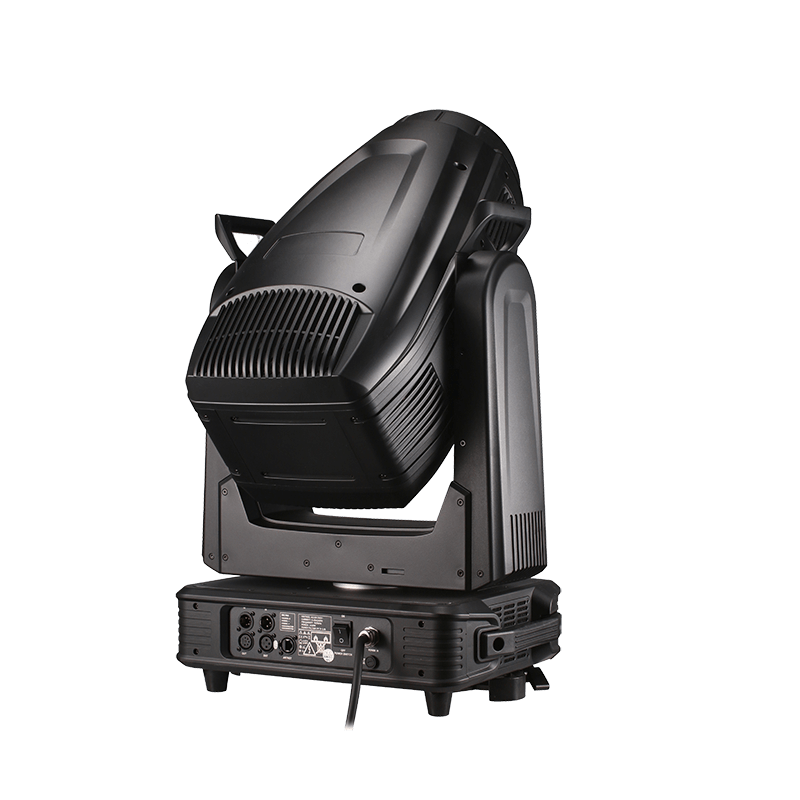

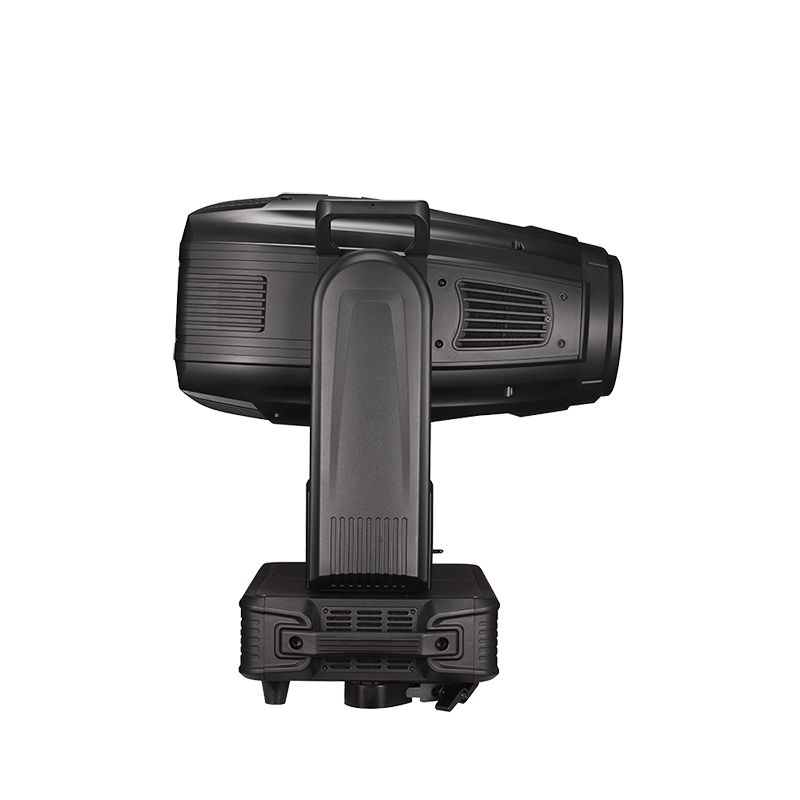

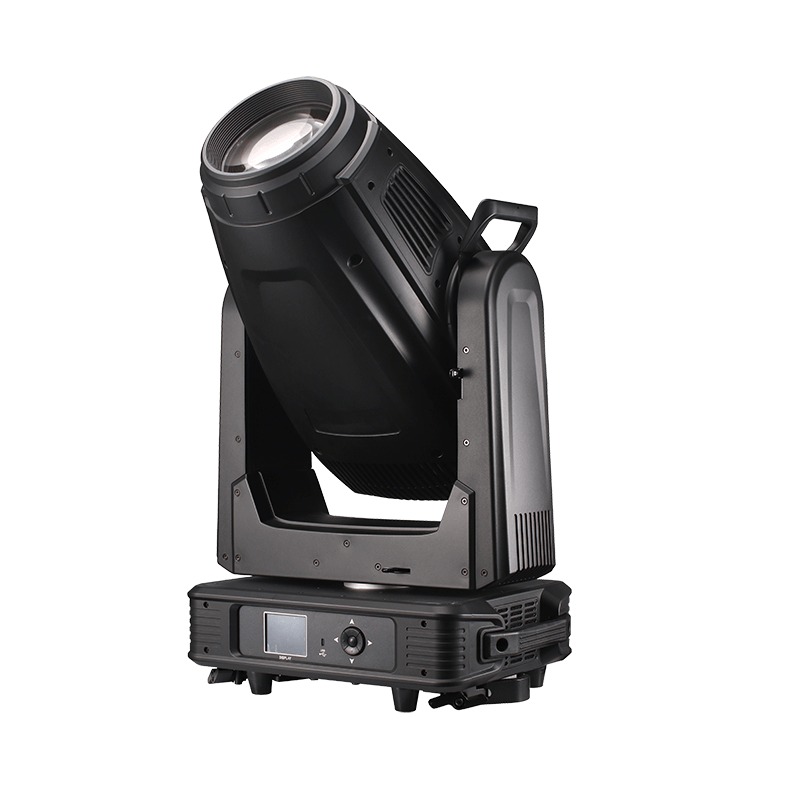

Item Name: 1000W LED Profile Moving Lights
Item No.: AZ-PL-1000W
Light Source:
-
Light source: 1000W LED white light module;
-
Light source color temperature: 7400-8400K;
-
Light source life: 20,000 hours;
Power:
-
Input voltage: AC110-240V, 50/60Hz
-
Frequency: 50/60Hz; Current: 11.8A-5.9A;
-
Power: 1420W; Power factor: PF≥0.95;
-
10m illuminance(min/max): 22800 lx/1.02m,800 lx/9.32m；
-
Lamp output luminous flux: 50988lm for high brightness, 28581lm for high brightness;
Optical Wheels:
-
Color wheel: 6 fixed color chips + white light, CMY infinite color mixing, CTO color temperature, 3200-6500K;
-
Color chip: imported Italian ODL color chip;
-
Rotating pattern wheel: 6 patterns + 1 white light;
-
Rotating pattern LOGO piece size: 29.9 mm;
-
Cutting: Four-piece full-process graphic cutting module, the cutting pattern can be rotated 180°;
-
Zoom angle: 7°-53°；
Effect Prism:
-
Frost function: light frost, mid frost and heavy frost ；
-
Iris function
-
Prism: 4 phase prism；
XY Movement:
-
Pan: 540°; 8 Bit / 16Bit;
-
Tilt: 270°; 8 Bit / 16Bit;
Others:
-
Display: 2.8-inch touch screen, can be reversed 180°;
-
Dimming: 0-100% electronic dimming;
-
Strobe: supports electronic strobe and adjustable speed strobe effects, and supports strobe macro function;
-
Positioning technology: Using high-precision magnetoelectric positioning system, XY-axis positioning is
-
accurate;
-
USB: Supports unplugging the address code when there is no power, and can be used as an external interface
-
for software upgrades;
-
Protocol interface: Supports RDM protocol interface, which can remotely and intelligently change the address code through the console;
-
Bottom: integrated folding light hook;
-
IP Rate: IP20;
Packing info:
-
Product size: 435x300x785 mm;
-
Catron box: 865x560x410 mm;
-
N.W: 35 kg;
