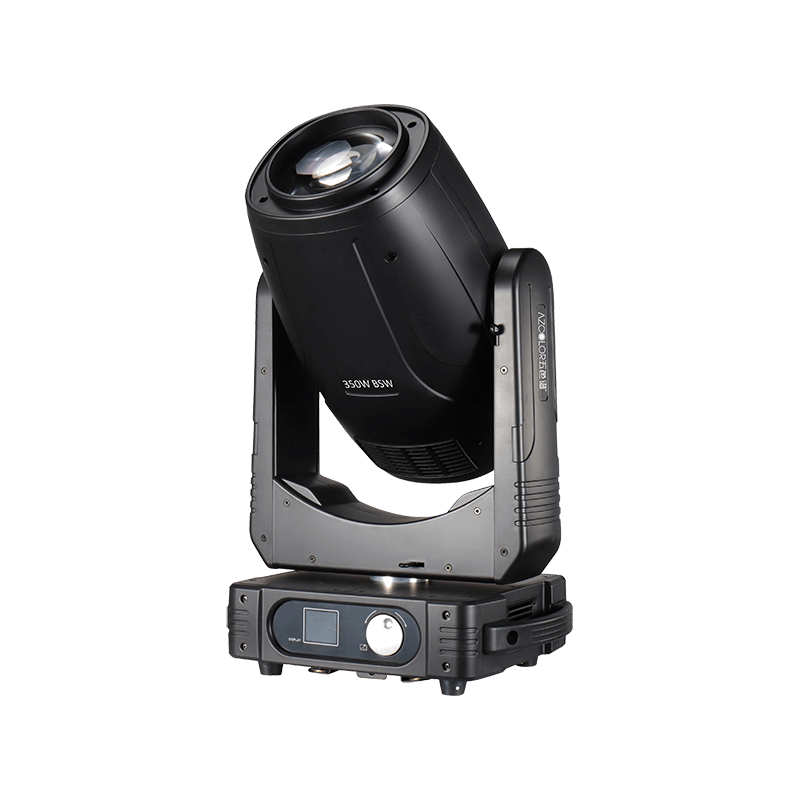

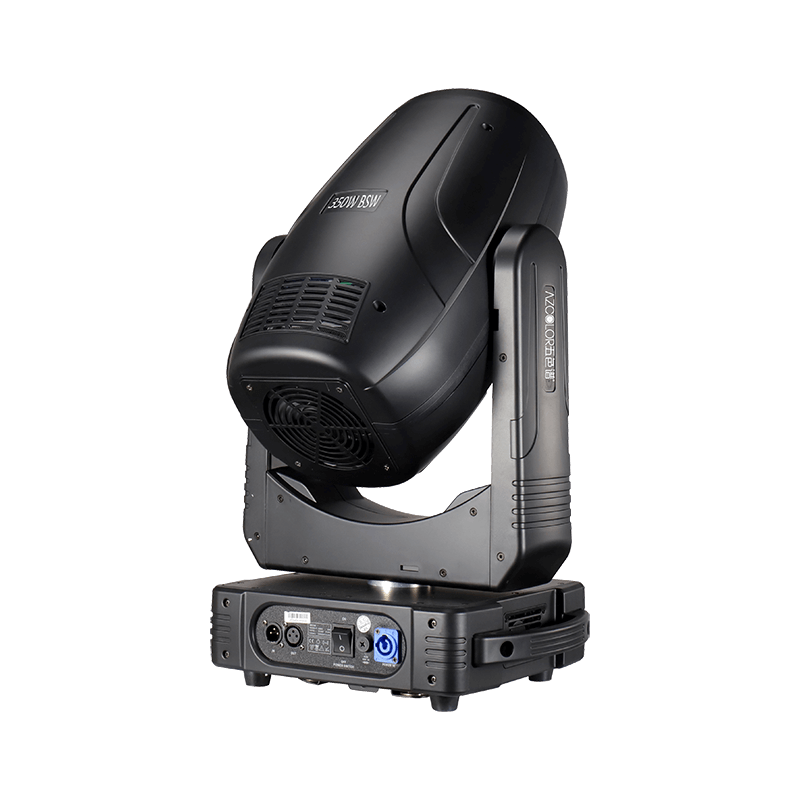

350W Hybrid Led Moving Lights+CMY
Product Introduction
350W hybrid led moving lights, adopts one pc white color great output COB led, add individually design optical system, then achieve the excellent angle, the minimum angle is 3degree, Max: 40 degree. In any degree, the fixture spot has hard edge, uniform color.
CMY+CTO+CTB functions are available. meeting all the requirements of the high-end moving lights demand.
Application areas
for any professional performance stages.
Share：
- Item Name: 350W Hybrid Led Moving Lights
- Iteam No.: LD-350-BSW-CMY
- Channel Mode：21CH / 25CH；
- LED Lighting Source: One pc COB White 350W LED
- Life time: 20000 Hours
- Input Voltage：AC110-240V, 50/60Hz；
- Power Consumption：416W
- Zoom Coverage：3°- 40°
- Fixed gobo：10 gobo + white
- Rotation gobo：9 gobo+ white
- Gobo size diameter(OD)：15.9mm ，image diameter(ID)：13mm ；
- Color Wheels：8 colors + white + CMY + CTO；
- Prism System：8 facet prism+ 3facet prism, fixed frost function.
- Display：2.8 inch screen display, can reverse 180°；
- USB：USB connector cn set DMX address without power switch on and upgrade the software.
- Dimmer：0—100% linear adjustment, supports electronic strobe and adjustable strobe effect, supports strobe macro function, lens group optical system, electric focusing, linear zoom；
- The photoelectric reset system is used. After the error occurs, the reset can be automatically retrieved.；
- Positioning technology the magnetoelectric positioning system uses magnetic devices instead of the traditional Hall positioning system, with higher accuracy and reliability.
- Pan：540°；8 Bit/16 Bit
- Tilt：270°； 8 Bit/16 Bit
- IP Rate：IP20
- Carton size：695x360x440mm；
- N.W.：19.6kg；
- G.W.：22kg（carton box）；
- Flight case G.W.：73kg；
- Flight case size：860x470x810mm；

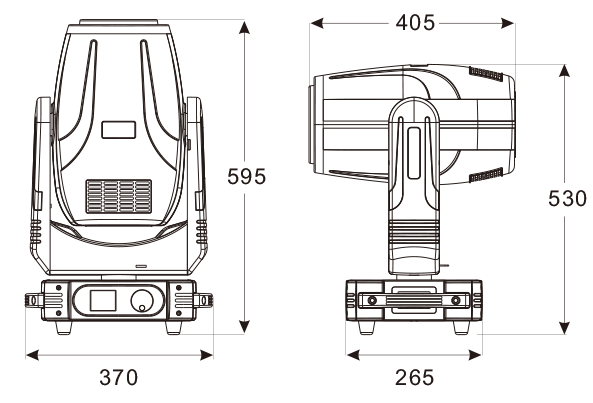

CAD Drawing:

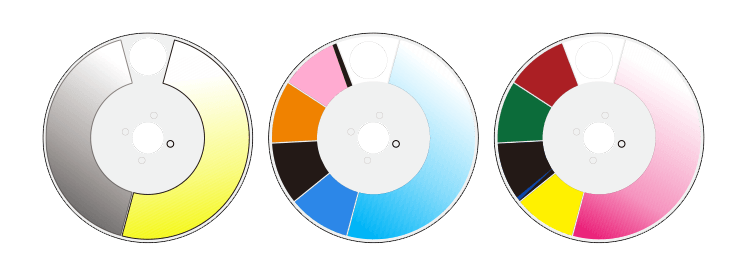

CMY+CTO Wheels

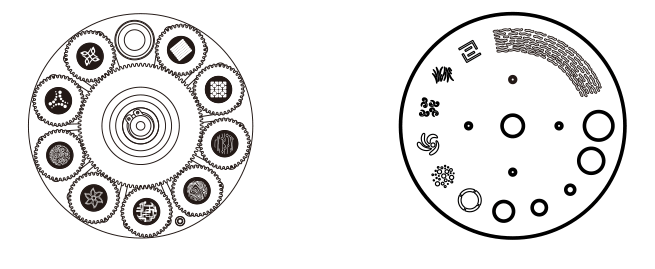

Fixed gobo wheel+ Rotation gobo Wheel
