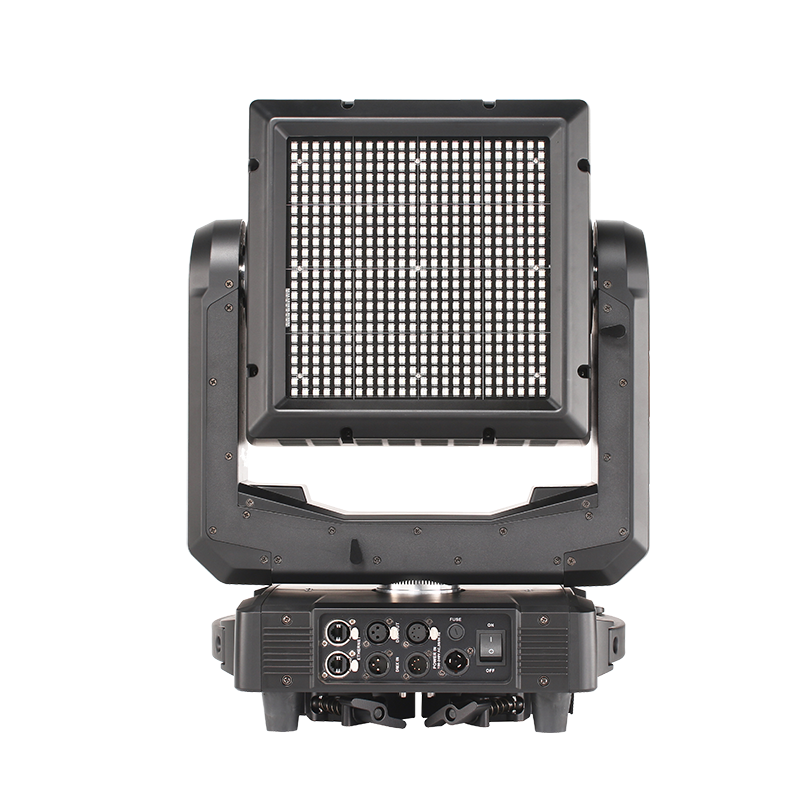

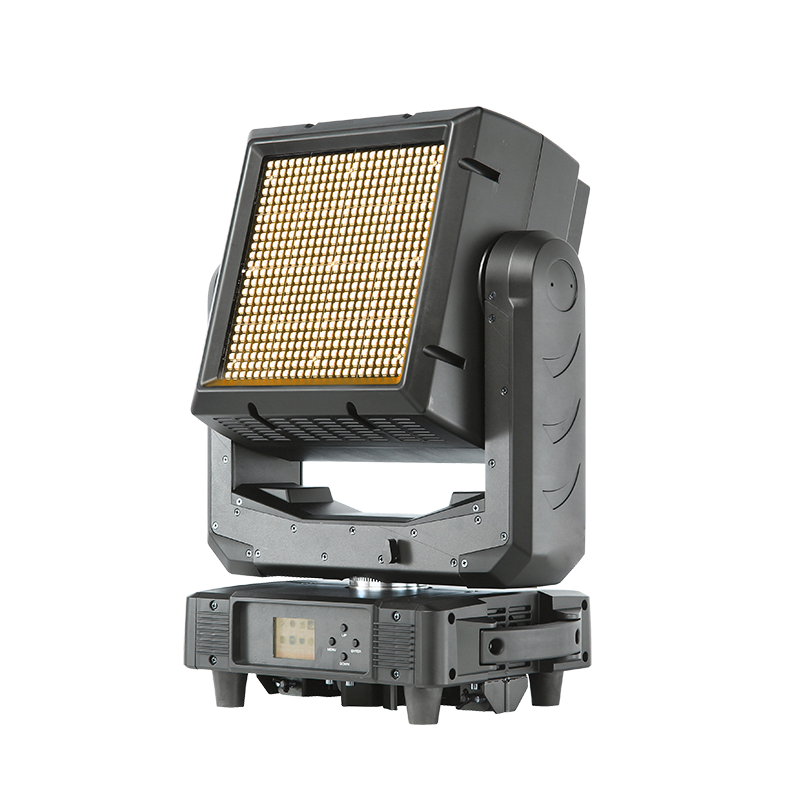

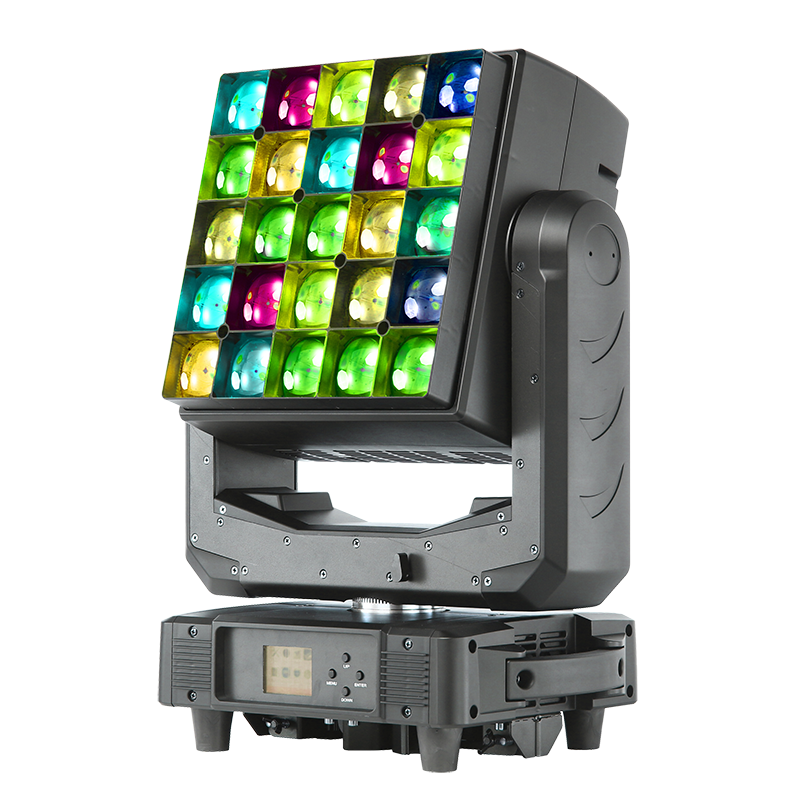

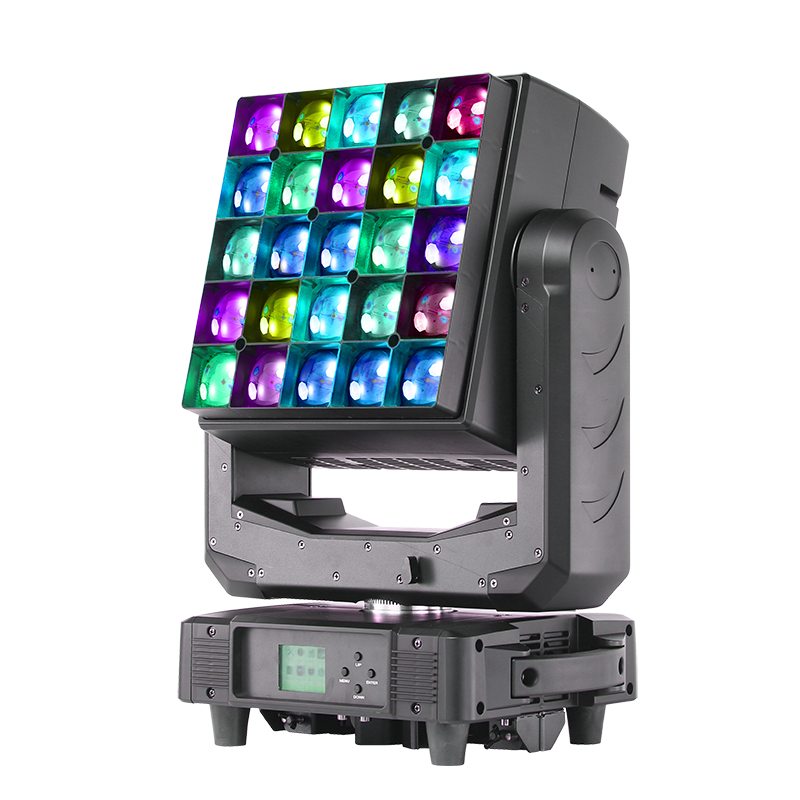

2540 Double Face LED Moving Head Lights|  Matrix + Strobe

Item Name: 2540 Double Face LED Moving Head Lights

Item No.: LD-MH-DF-2540

Light Source:

• Wash effect - 25x 40W LED 4in1 RGBW ;
• Strobe effect - 576*0.5W 4in RGBW LED. (Life expectancy> 50,000 hours)

Optical system:

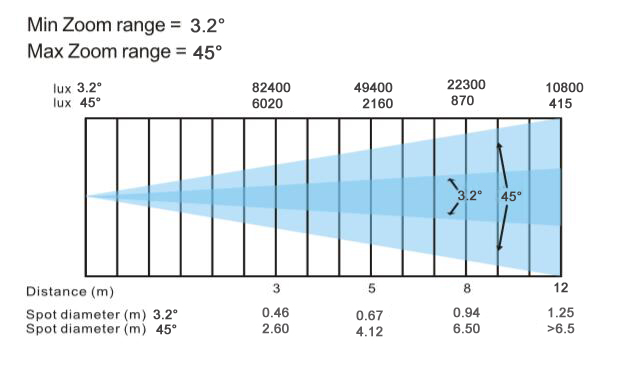

• Beam angle is 3.2 ° -45 °;
• Glass light guide rod + PMMA high-quality optical lens
• Power Consumption: 1000W; Power factor PF≥0.98
• Input Voltage: AC 100-240V, 50/60Hz
• Working temperature: -10 ℃ ～ 45 ℃

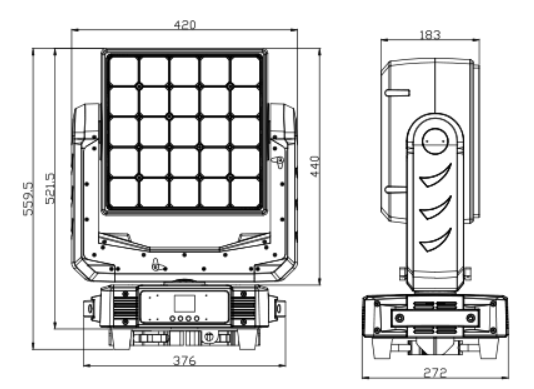

Weight and dimensions:

• Dimension: 37.6cm × 27cm × 60cm
• Net Weight: 24Kgs

Packing details:

• Flight case 2-in-1: 743 * 462 * 770mm, gross weight: 78.8kg;
• Carton case 1-in-1: 530 * 420 * 595mm, gross weight: 28.5kg

Control

• Control Modes: DMX512,Artnet control
• DMX mode: 26/33/43/143/120
• Artnet mode: 120 channels

Pan/Tilt

• Pan/Tilt: infinite rotation (using photoelectric reset system)
• Pan: 360 °,accuracy 0.86 ° / step, fine-tuning accuracy: 0.0034 °
• Tilt:540 °, accuracy 2.11 ° / step, fine-tuning accuracy: 0.008 °;

Construction:

• Display: 180°reversible 2.4-inch LCD color display(Chinese or English)
• Data In/Out socket: 3-pin & 5-pin XLR sockets
• Powercon in
• Protection Rating: IP20

Features:

• Effect configuration: full light domain dimming, 65536 level dimming accuracy; fast strobe 1 ~ 25Hz; preset --- a kind of color macro function; preset --- a kind of effect macro function
• Led temperature protection & Speed of fan run automatic based on the temperature of the head.
• Single led Pixel control, zoom effect, ArtNet control , infinite Pan and tilt rotation.
• Electronic control technology: menu or console control lamp reset; 0-100% dimming; constant current drive mode; temperature sensor detection, intelligent adjustment of light source power; lamp information query; intelligent fan speed adjustment
• Safety protection: over current, over voltage, over heat protection, XY fixed lock
