outdoor 650W Led water-ripples effect Lights

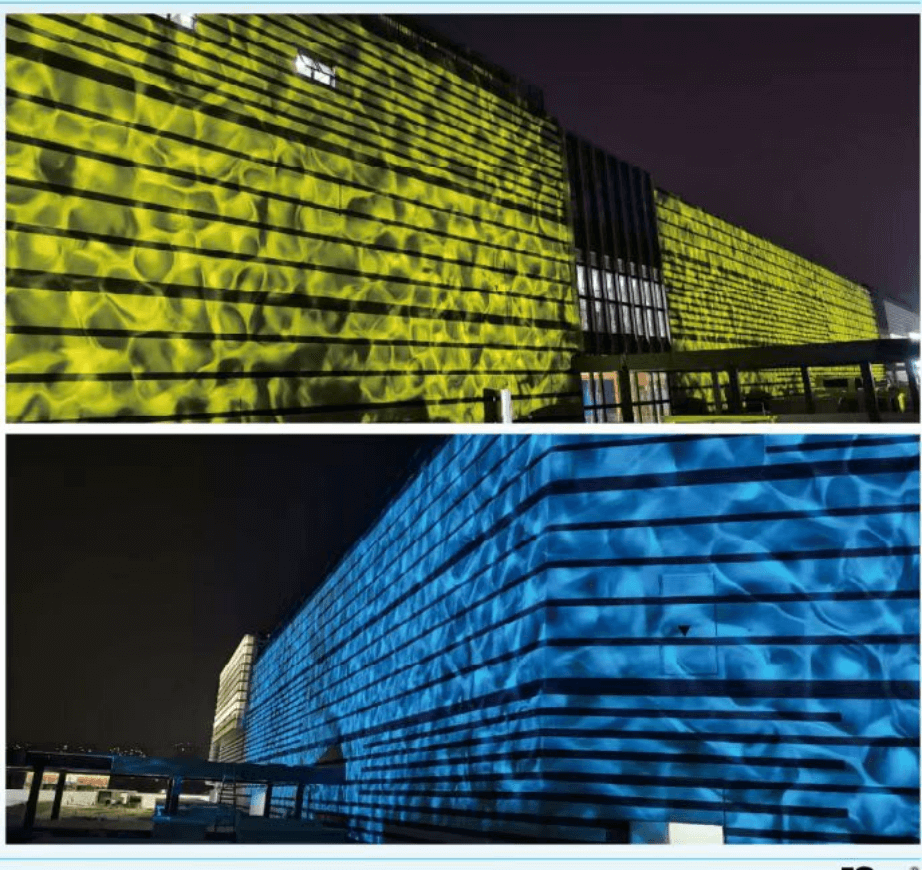

azcolor lite Co., Ltd. is located in Guangzhou City. It has professional experience in outdoor cultural and tourism lighting, outdoor LED water wave lights, from 150W to 850W. LED water-wave lights, the color of the lights adopts transitional rotation, and can display a combination of multiple colors at the same time. Spots can be seamlessly spliced. Waterproof LED water wave lights can choose different powers according to the installation distance, the area of the building facade illuminated, and the focus. The functions, power and brightness of the three are all suitable for the cultural tourism market, theme parks, characteristic towns, live performances, building facades, commercial plazas, aquariums, bridge lighting, etc. The company also provides design and installation one-stop guidance services.
It can be square light spot, with seamless splicing effect, and the light spots of lights and lamps can be seamlessly spliced.
The color of the lights adopts a transitional rotation, and can display a combination of multiple colors at the same time.
All-aluminum chassis heat dissipation design is adopted, and the outdoor protection level of lamps can reach IP65
The lights have a variety of optional configurations, such as optional wireless signal control receiving system, etc.
Remote electronic focus, can remotely adjust a variety of water ripple effects and water ripple flow speed
A variety of color transition effects, a good interpretation of the morning, noon, evening and other sunlight water effect
- Item Name: Outdoor 650W LED Water Ripples Light
- Item model: AZ-SW-650-IP
- Input voltage: AC110-240, 50/60Hz
- Rated power: 650W/550W
- Appliance type: CLASS I
- Power factor: PFC>0.96
- Light source: 1pc 600W/500W/ multi-point honeycomb spot light highly integrated light source
- Lights life: >30000h
- Color temperature: 7500K
- Electronic focus: 10%-0-10%
- Strobe speed: 1-20Hz/sec
- Optical angle/zoom Coverage: 12°-50° zoom
- Spot shape: round
- Dimming curve: Level 1 super soft linear dimming
- Control and others: international standard DMX512 protocol, auto-run mode, master-slave mode, Other Controls: Offline Autorun
- Number of channels: 11 DMX512, international signal standard channel mode
- Color Wheel: 7 colors + open
- Water ripples effect: double water ripples plate flow effect
- Water ripples direction: flow up and down
- Display mode: LED digital display
- Protection function: overheat protection
- Control mode: international standard DMX512/
- RDM bidirectional control signal/
- Self-editing manual control system
- Adjustment angle for stander: up and down adjustment>90°, adjustment method: manual
- Temperature control: real-time monitoring of light source temperature
- Connection method: hand in hand connection, single-entry power cord, waterproof signal interface/XLR male-female interface
- Light body material/color Metal die-casting shell (professional outdoor paint, anti-UV and anti-salt spray), lampshade material/color off-white (customizable)
- Noise decibel: 35dB (0.5m)
- Working environment: -25°C/+35°C
- Display mode: LCD color screen / Chinese and English switching / screen flip
- Signal interface: waterproof interface / XLR male and female interface
- Heat dissipation method: conduction heat dissipation
- Salt spray: Professional outdoor paint, anti-UV and anti-salt spray
- Ventilation: The device has a vent valve vent hole
- Power device: full power overheating protection device
- Shell material: full die-cast aluminum shell
- Internal protection: electronic moisture-proof process
- Protection class: IP65
- Net weight: 23kg
- Lights size: 538*349*428mm

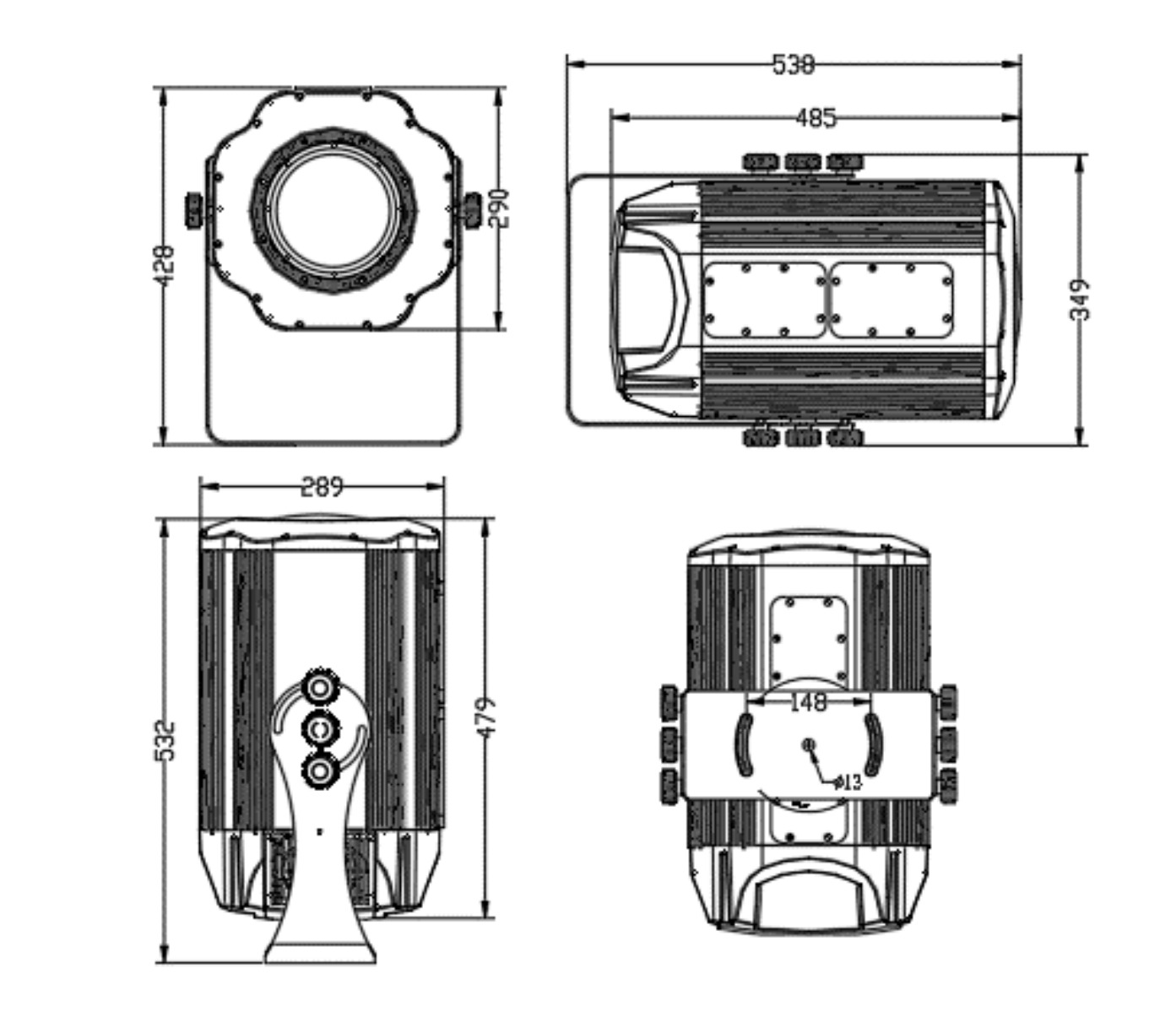

CAD Drawing:
