Outdoor Moving Head Lights| S20 470W
Product Introduction
Outdoor moving head lights, after outdoor searchlight, is the most popular urban lighting fixtures, waterproof and high brightness. The price is affordable, the best choice to decorate the night sky of a city or scenic spot.
Advantages: small size, easy installation, long life of the light source, and low maintenance cost.
Application areas

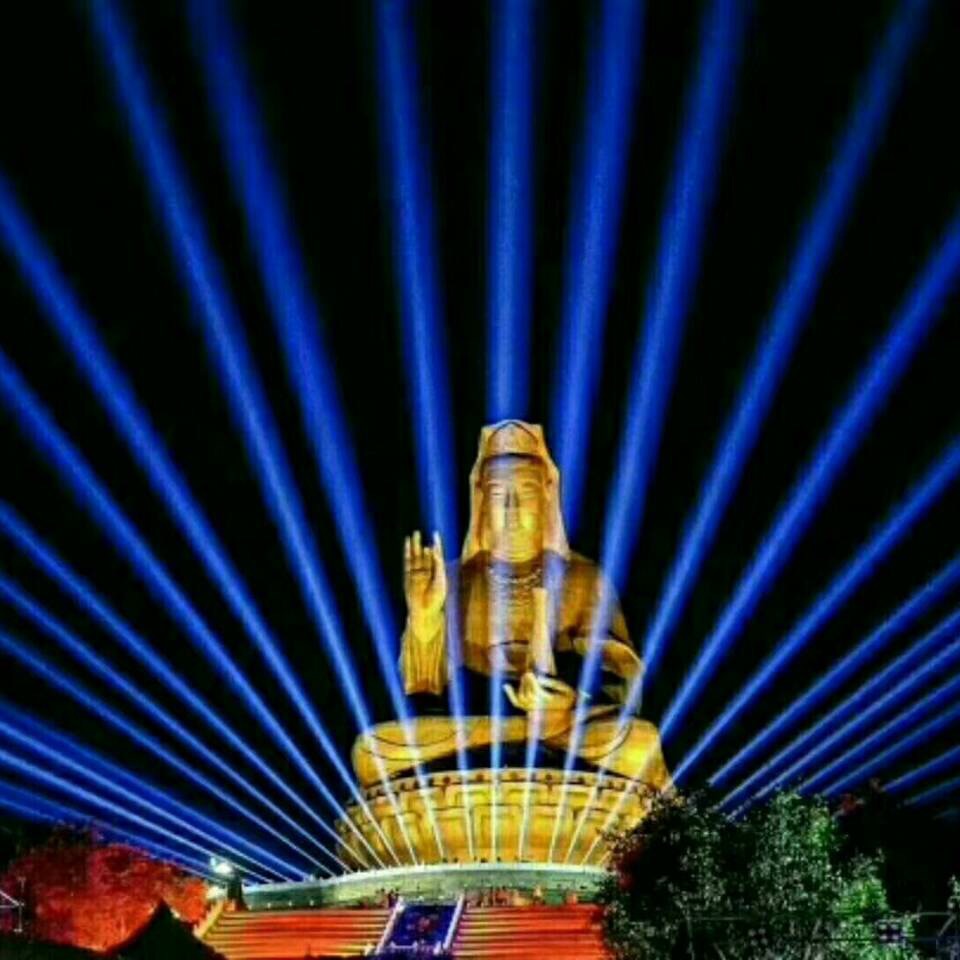

City landmark building lighting project, outdoor performance project installation.
Share：
- Input voltage: AC90-260V, 50/ 60Hz
- Light source power: S20 470W OSRAM MSD
- Rectifier: OSRAM MSD S20
- Rated Power Consumption: 600W
- The theoretical life of the light source is more than 1500 hours
- Bulb color temperature: 7500K
- Focusing: linear electric focusing
- Among them, the color temperature of the color chip: 2500K and 3200K are optional (optional)
- Dimming: smooth dimming without flicker
- Strobe: independent strobe, 0.5-20 times per second adjustable
- Color/pattern/effect Color wheel: 11 color chips (customizable CMY)
- Beam angle: 2°
- Lens diameter: 183mm
- Beam diameter: 170mm
- Fixed gobo Wheel: 12+1+ can shake in both directions, animation, and water effects
- Prism 16 prism + 8 prism (standard, can be customized)
- Control mode: DMX 512, auto-run, master-slave
- Rotation angle: X-axis 540 degrees, Y-axis 275 degrees can automatically correct positioning
- Channel: Standard 16 channels
- Lights material: high-strength PA66 has the characteristics of high temperature resistance, aging resistance, wear resistance, light weight and drop resistance
- Protection level: IP55
- Lights body size: 418*378*620(mm) 25kg
- Flight case size: 500*435*825mm 44kg 1pcs/ 925*500*825mm 82kg 2pcs

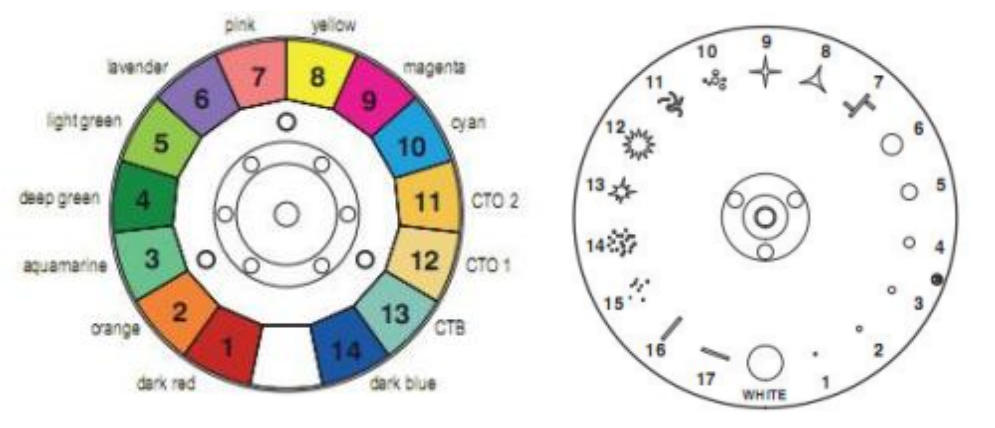

Color Wheel+ fixed Gobo Wheel

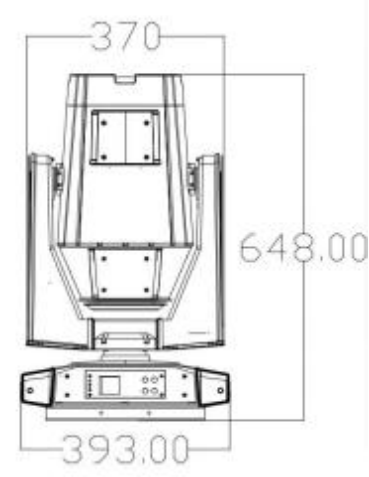

CAD Drawing:
