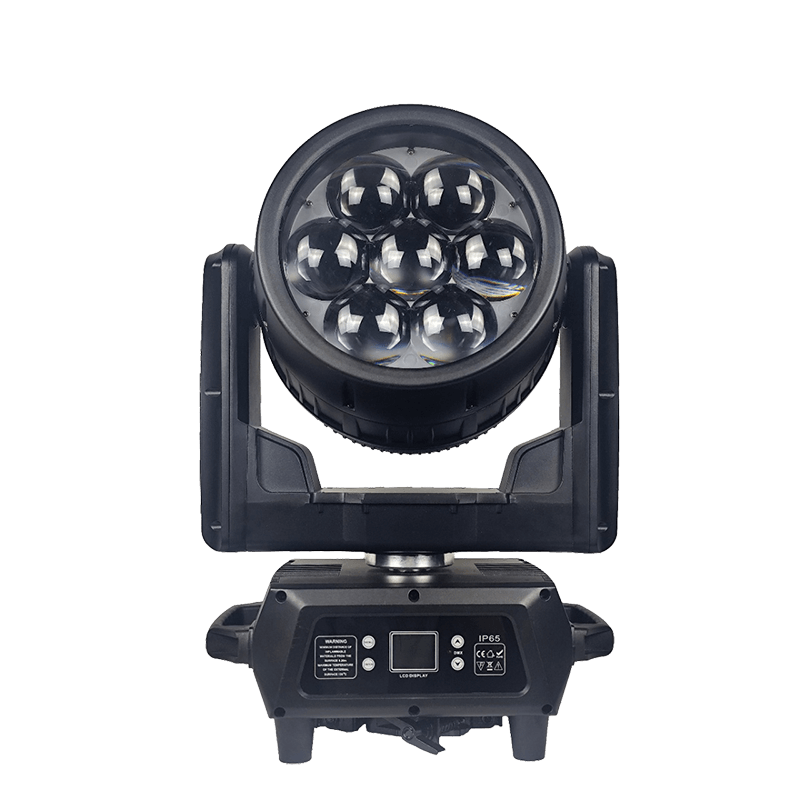

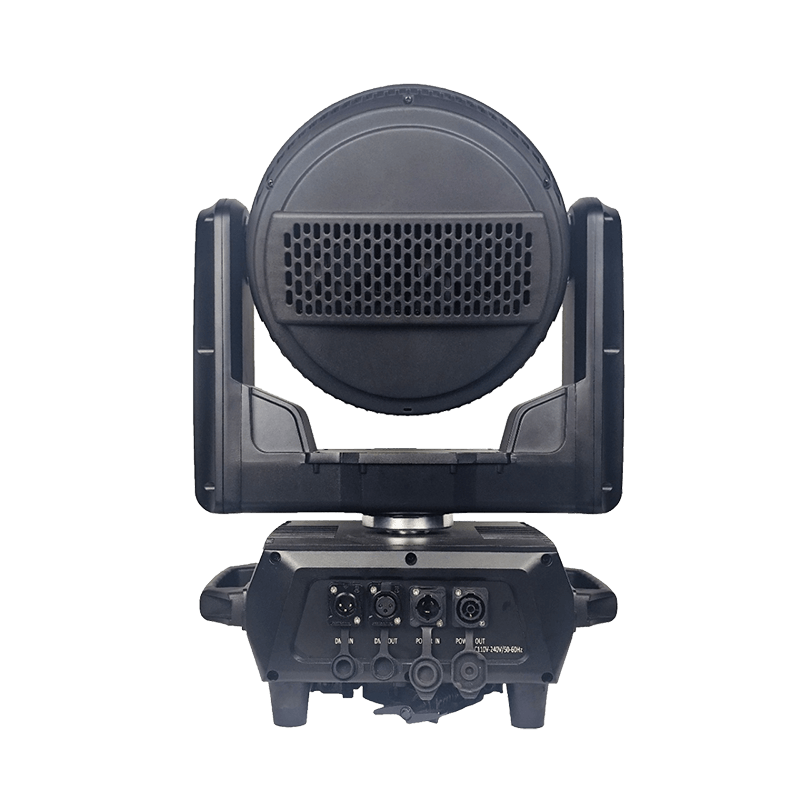

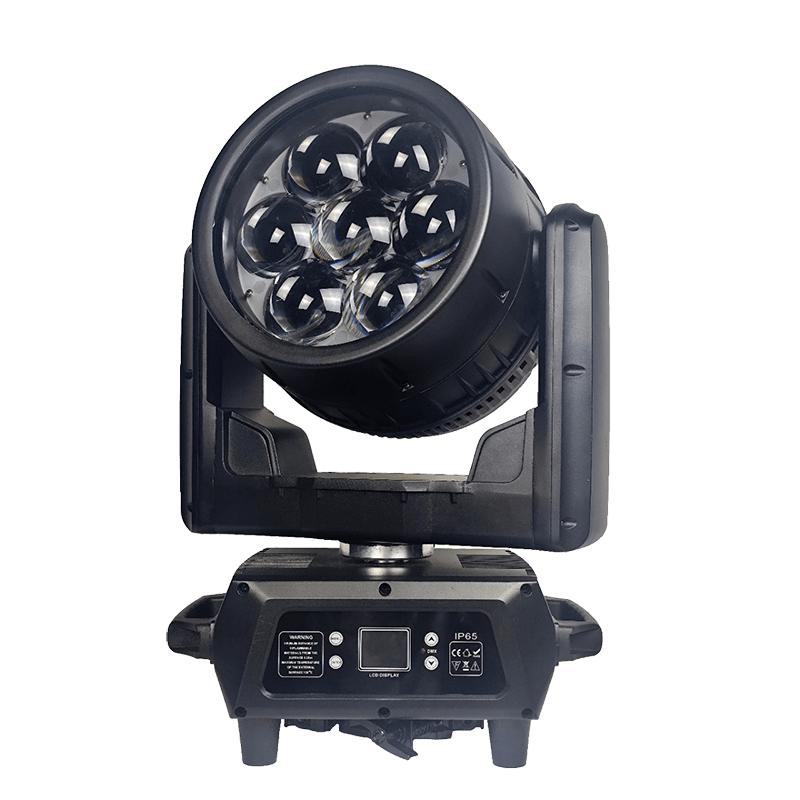

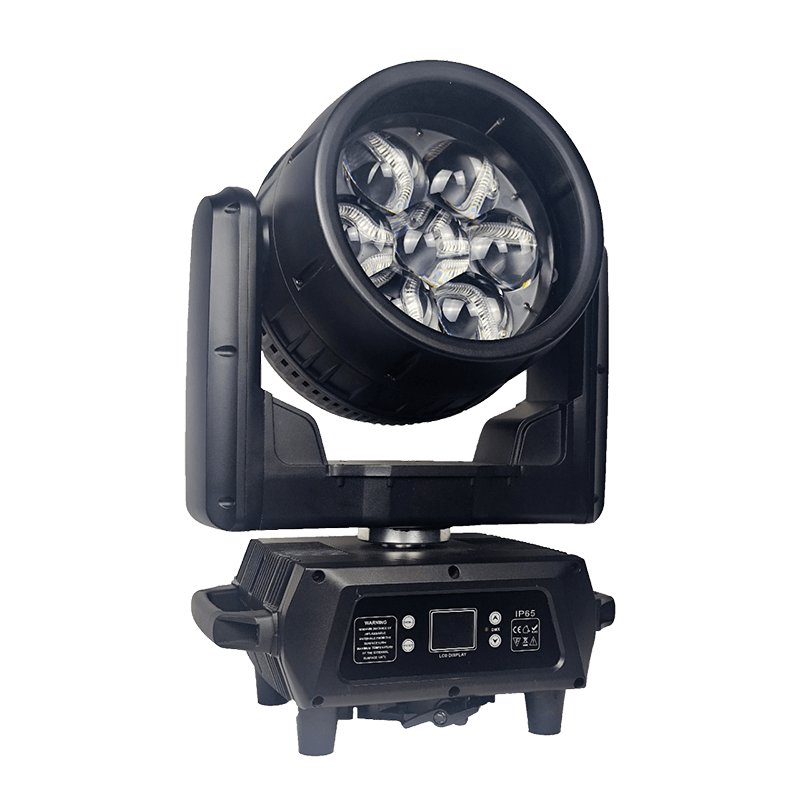

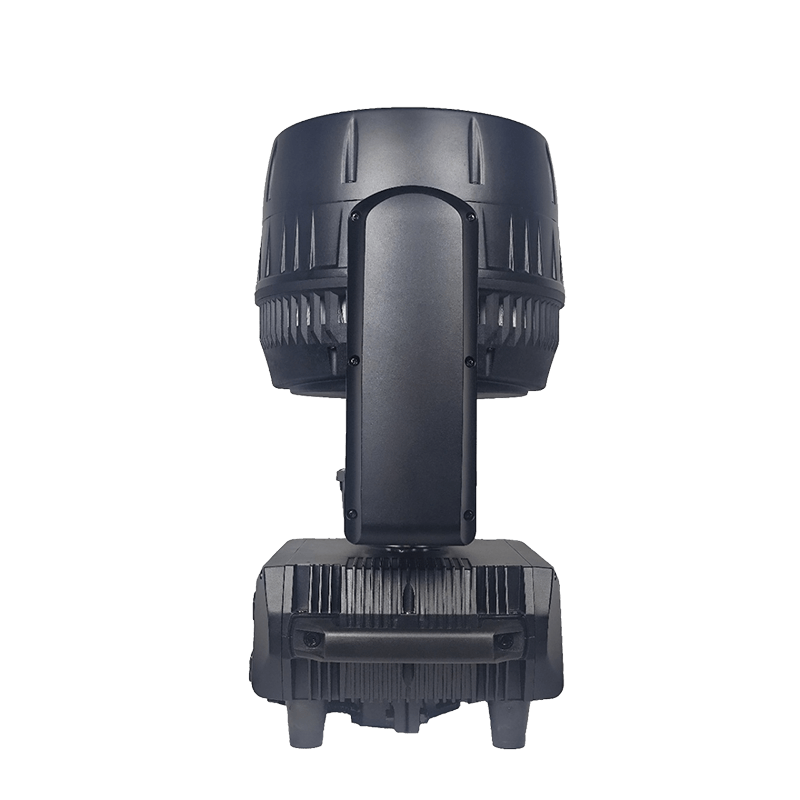

760 B-Eye LED Moving Lights IP

• Item Name: 760 B-Eye LED Moving Lights IP
• Item No.: AZ-MH-760-IP
• Input Voltage: AC90-240v 50-60HZ
• Rated Power Consumption: 550W
• LED Lighting  source：7x 60W（4in1 RGBW) Quad LEDs
• Filament Aura: 12x 3W (3in1 RGB) LED filament
• Zoom Coverage: 7°-45°
• Strobe：1-25HZ with multiple strobe effects
• Dimming: Four dimming effect (Linear/Square/I Sequare/Scurve) 0-100% linear dimming.
• Channel： Built-in 6 channel modes 21/30/36/57/78/93CH
• Control：DMX512，Auto，RDM, Art-Net (Support for additional installation)
• Pan Movement: 540°+16bit fine ;
• Tilt Movement: 270°+16bit fine
• Optical effect: High precision integrated structure PMMA lens, high transparency quartz glass light pipe,creating a softer wash range. Latest Aura filament pixel effect.
• Color: RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and whitetones. Tungsten Emulation Option.Virtual Color Wheel.
• Macro effects: Multiple built-in macros with control of foreground color, background color, speed and direction. 3D video mapping of fixture beam pixels and/or Aura filaments. High-speed pan, tilt and zoom
• Temperature control: Intelligent temperature control, capable of automatically adjusting the speed of the cooling fan and overheating protection
• Body material: Latest second-generation structural waterproof design, metal die-casting aluminum shell and fire-resistant and UV resistant engineering plastic
• Protection level: IP65, waterproof, dust-proof, oil resistant design, suitable for outdoor any weather condition
• Display：1.77-inch OLED screen, Chinese and English menu, anti-interference photoelectric signal isolation system, waterproof intelligent touch key (screen activation password 1111)
• Fixture dimension：38.6*29.1*53.3cm
• Carton size（1pc/ctn)：63*47*36cm
• N. W.: 19.5kg
• G.W.: 22.5 kg
• Flight case size(2pcs/case): 96*45*78cm
• Flight case N.W.: 31kg; G.W.：72kg

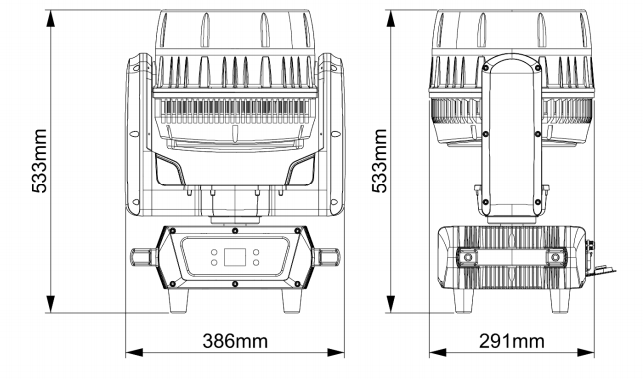

CAD Drawing:

Effect Pictures:
