5120 LED Moving Lights-Super Beam
Product Introduction
- azcolor lite 5 x 120W LED moving lights-super beam as its main light source, complemented by a ring of 120 x 0.5W RGB LEDs encircling the fixture, it promises an unparalleled fusion of brilliance and versatility.
- The fixture is equipped with 5-individual-head featuring precise pan and tilt movements. Each head can be controlled independently, offering limitless possibilities for artistic exploration and creation.
- Experience the fast and smooth linear zoom from 3° to 30°, with a field angle of 4° to 35°. Witness the magic as it produces sharp, saturated beam effects, ensuring your visuals shine with unparalleled vibrancy and brightness.
- With an all-weather IP65 rating
Application areas
any professional performance occasions.
Share：
- Item Name: 5120 LED Moving Lights-Super Beam
- Item No.: AZ-MH-5120
- Input Voltage: AC110-240V, 50/60Hz
- Rated Power Consumption: 750W
- LED Lighting Source : Main Light: 5 x 120W RGBL LEDs, Outer Circle: 120 x 0.5W RGB LEDs
- LED Lifetime: Average 20000 hours
- Beam angle: 3°-30°, Beam divergence:4°-35°
- QTY of Channel: 21chs/41chs /71chs/75chs/85chs/170chs 6-channel-mode
- Control Mode: DMX-512,Auto-run, Sound activated
- Pan Movement: 60° , Tilt Movement: 220 °
- 0-100% smooth dimmer lighting
- Strobe: 1-25HZ/S
- Linear CTO color temperature adjustment, excellent mixing function, linear zoom function
- Waterproof Rate：IP20
- Dynamic Effects
- 1. 5 individual heads
-
2. Each head has one led ring (24 leds) that can be individually
controlled 3. 0-100% continuous dimming and strobe effects
4. Choice of four dimming curves
5.Variable color temperature control
6. Outstanding color mixing
7. Motorized zoom
- Fixture size:102*19.6*33.4cm
- N.W: 27.6KG, G.W：30.6 KG
- Carton case(1in1):117x39.5*30.5cm
- Flight Case Size(2/1):107*67*58cm, N.W:38KG, G.W:96KG

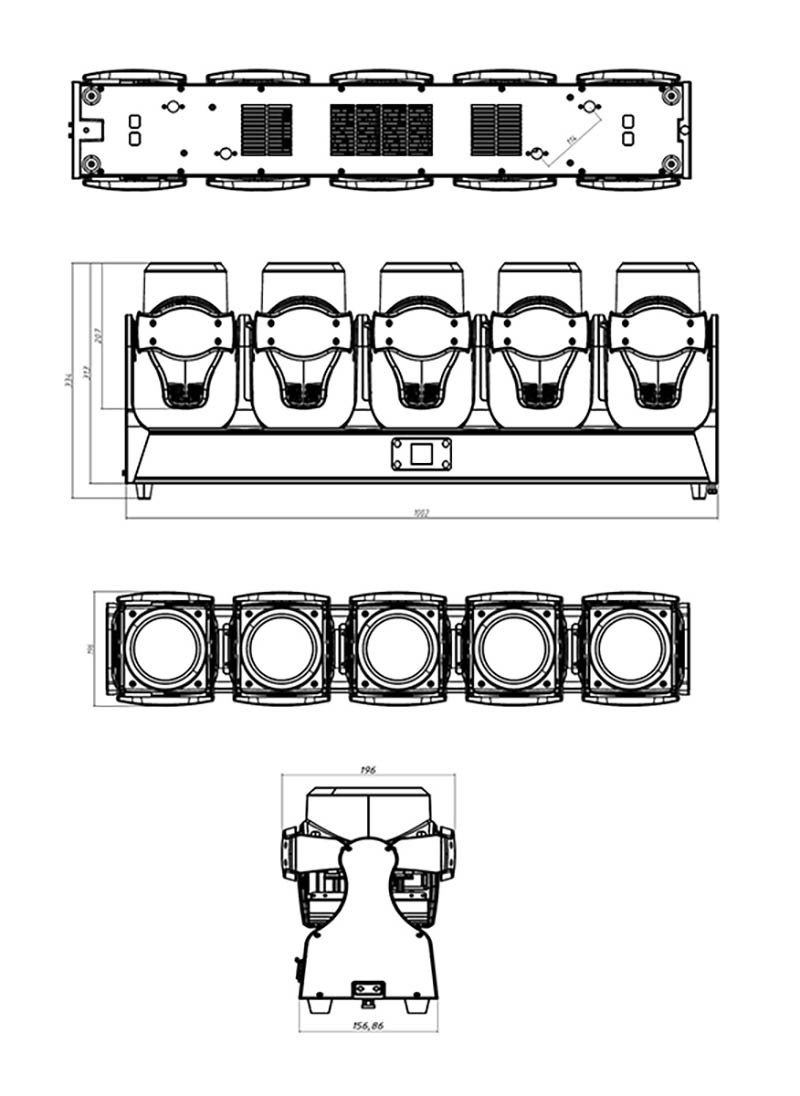

Lighting CAD Drawing:

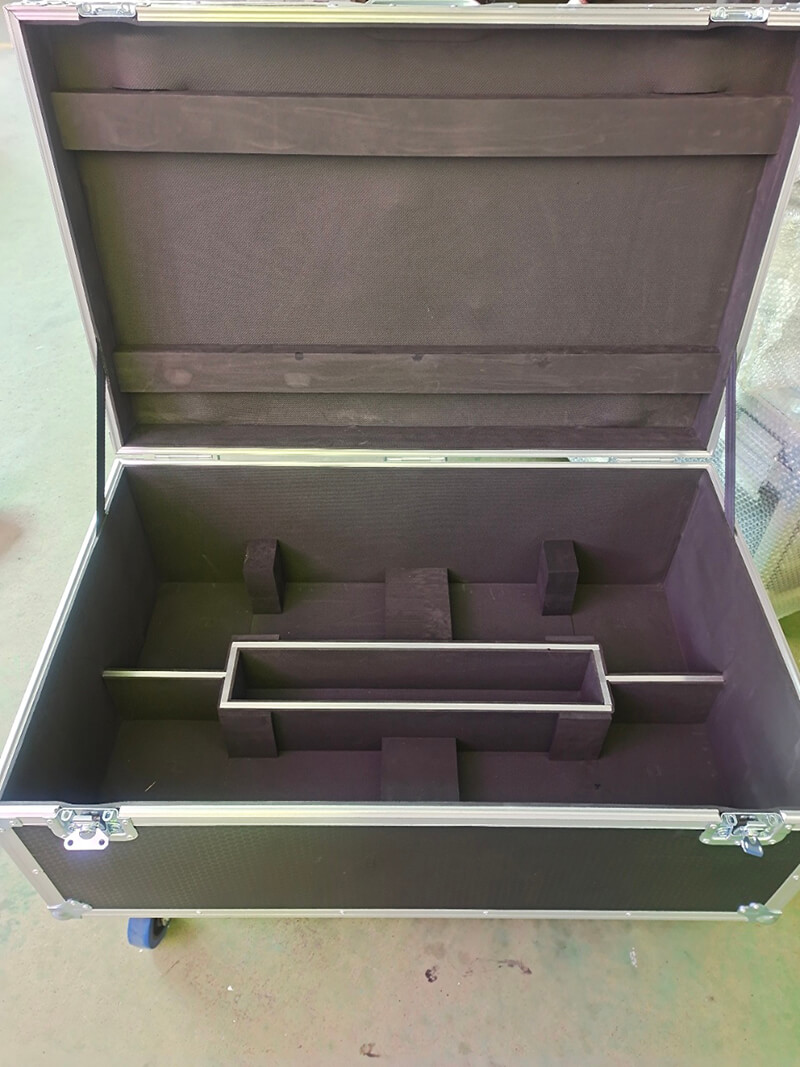

Flight case Layout:
Tag：led moving lights, led moving bar, super beam, 5120 moving matrix, led stage lights, led moving bar lights.
