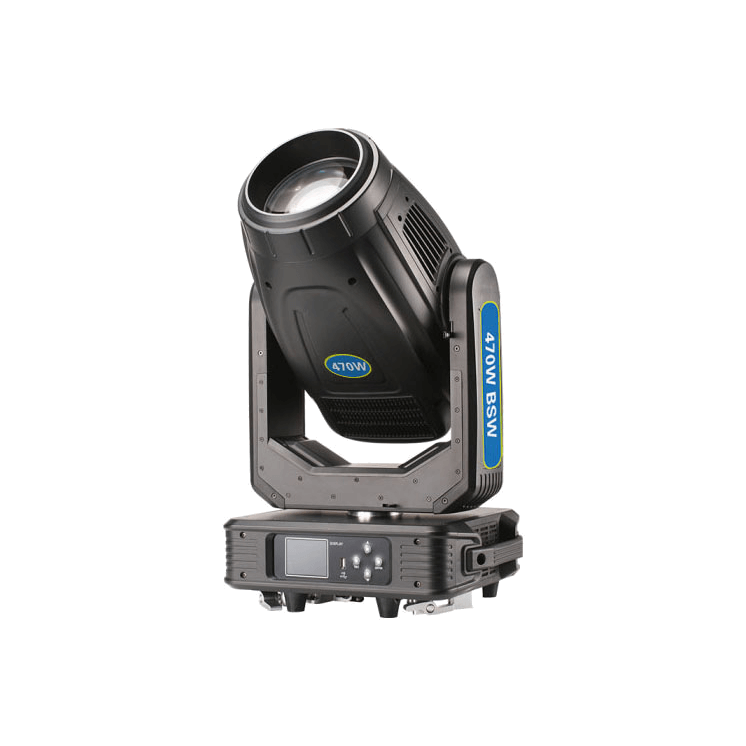

Megaplus 470 BSW Moving Lights
Product Introduction
AZCOLOR 470W 20R Hybrid moving head is the latest product with CMY and CTO.
Advantage.
- USB connector can set dmx address with power and upgrade the software.
- 3 in 1 hybrid moving head, integrate Spot, Wash and Beam 3 effect function.
- incl. CMY and CTO function. perfect wash effect.
- 4 kinds Prism, 8-facet prism, 6-linear prism, frost prism
- OSARM 20R original lamp.
- Better inner structure design, easy maintenance in the future.
- library Compatible Robe mega pointe moving heads
Application areas
any professional occasion, tv studio, live show, and so on.
Share：
- Item Name: Megaplus 470 BSW Moving Lights
- Item No.: LD-MH-470-BSW-MP
- Input Voltage: AC110-240V,50/60Hz
- Lamp Source: original OSRAM SIRIUS HRI 470W XL;
- Rated power Consumption: 600W;
- Channels mode: 34chs/39chs
- Color Wheel: 11 Colors+2700k +3200k+white+cmy
- Color Mixing System
- Fixed gobo: 14 gobo + white.

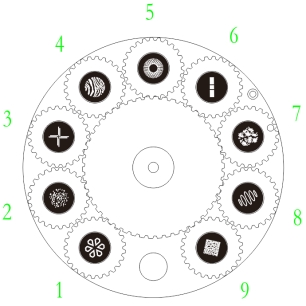

- Rotation gobo: 9 gobo+ white,changeable;
- Animation Gobo: could Used By Separately Or Combined With Gobos
- Rotation Prism Wheel 1:8 Facet Prism+linear 6 Facet Prism+cylindrical Prism
- Rotation Prism Wheel 2:8 Facet Prism+linear 6 Facet Prism+double Layer Prism
- Prism Wheel 1 And Prism Wheel 2 Can Overlay
- Frost:separately Frost
- Beam angel: 2.5°～45°;
-
Display: 2.8 inch screen display, can reverse 180°;
- USB connector can set dmx address with power and upgrade the software. (RDM function)
- Dimmer : 0-100% l inear adjustment ;
- Pan: 540°; 8Bit/16Bit;
- Tilt: 270°; 8Bit/16Bit ;
- IP Rate: IP20;
- Product size: 405x245x685 mm;
- Flight caes: 930x520x910 mm
- Carton box: 540x450x650 mm;
- N.W: 24.5 KG
- G.W: 28 KG(carton).

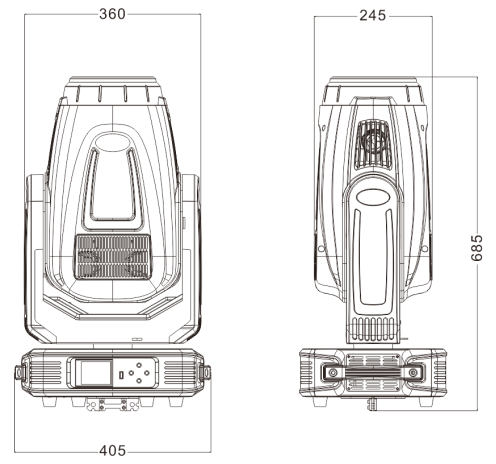

CAD Drawing

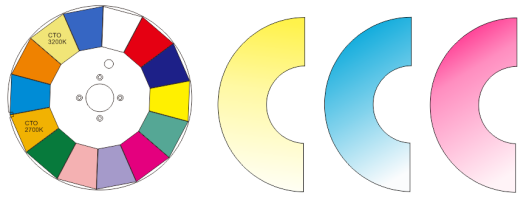

Color wheel + CMY +cto+ctb
旋转棱镜盘1: 8棱镜+直线6棱镜+柱面镜与旋转棱镜盘2：8棱镜+6棱镜+双层棱镜，两盘可叠加，雾化功能独立
Tag： Megaplus 470 BSW Moving Lights, 20R 470W Hybrid Moving Head, CMY, CTO, 470W pro moving head, stage lighting, entertainment lighting, lighting rental business, concert lighting, club lighting
