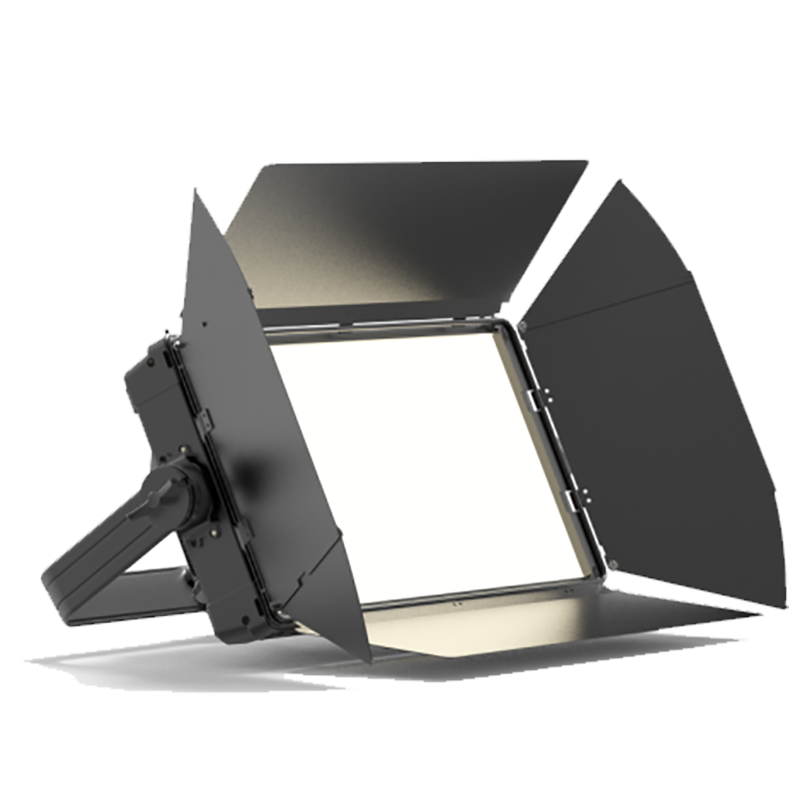

200W LED TV Light Panel-super
Product Introduction
- with outstanding floodlight and soft light
- A variety of stroboscopic effects
- dual color temperature adjustment to simulate the entire color temperature range from sun rise to sunset
- 4 DMX512 international signal channels are optional
- super soft and delicate dimming technology
- filter plate and shading plate without screw lock design, can be Direct disassembly
Application areas
widely applied to photographic studio, TV station, conference room, shopping mall;
Share：
Item Name: 200W LED TV Light Panel-super
Item No.: LD-ST-648
OPTICAL
CONTROL
ELECTRICAL
CONSTRUCTION / PHYSICAL
CONNECTIONS
CERTIFICATIONS and Safety
Optional accessories: Diffuser, barndoor.
Item No.: LD-ST-648
OPTICAL
- Light Source: 648 LEDs (3200K)+648 LEDs (5600K)
- Color temperature：3200-5600Ｋ(Adjustable)
- Ra: >95
- TLCI: 98.8
- Beam angle (50％): 104°
- Beam angle (10％): 157°
- Max.Flx: 17883 lm
- Peak Intensity: 6936 cd
- Illuminance: 281 lux @ 5m
- Selectable PWM: 10000 Hz
CONTROL
- DMX Protocol: USITT DMX512-A
- RDM: ANSI/ESTA E1.20 RDM
- DMX Channels: 4 CHs
- 4 Button Control Panel，Knob controls total dimming and color temperature
- LCD display
- Software upload: XLR
- Input Voltage: 100-240VAC, 50/60Hz
- Power and Current (240V/50Hz): 220W, 0.966A
CONSTRUCTION / PHYSICAL
- Dimensions: 597*335*121mm
- Weight: 7.2 kg
- Exterior Color: Black
- Housing Material: Stretching Aluminum
- Cooling: Natural Cooling
CONNECTIONS
- Power Input：Power input socket
- Power Output：Power output socket
- Data Connectors: 3pin/5pin XLR
- Cable Length (power): 1.2 m（3.9 ft）
CERTIFICATIONS and Safety
- Certification: CE,ROHS,
- IP Rating: IP20,indoor
- Operation Temperature: -20°C ～ 40°C
Optional accessories: Diffuser, barndoor.
